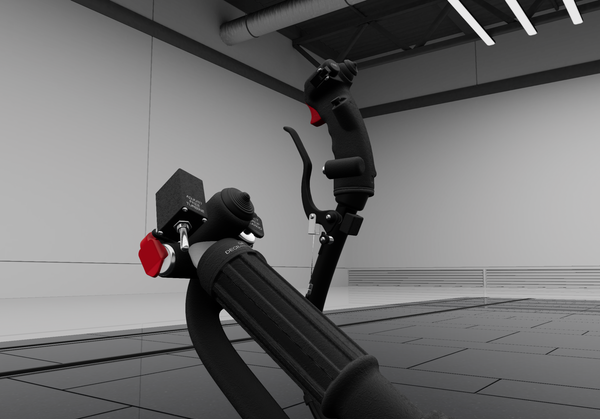

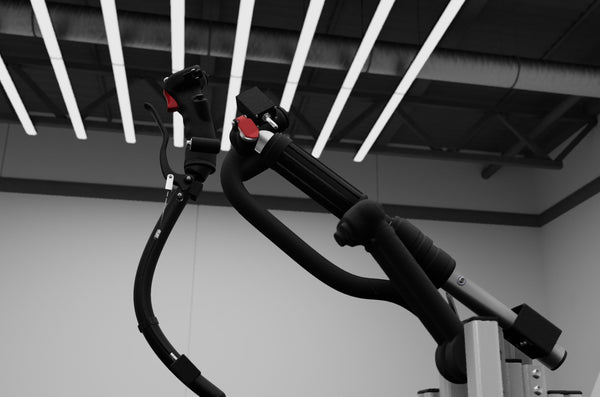

Mi24-2024 MAX


  2nd generation of our Mi-24 model, developed from 3d scans of the actual controls and a number of Mi-24 enthusiast (owner of actual Mi-24 controls)


  • All grips and collective front box in standard version are industrial grade SLA resin prints with high impact resistance
  • All grips and collective front box in metal version are industrial grade powder metal printing in Aluminum
  •    Hall Effect Sensors for all axes
  •    12 bit analog digital converter for all axes
  •    Cyclic: 1 x parking brake (sprint back), 1 x wheel brake lever (spring back) , 1 x SPU radio trigger (2 stage), 1 x trimmer HAT, 1 x Weapons release button, 1 x trimmer button, 1 x Auto Pilot disconnect button
  •    Twist throttle collective: 1 x turbine rpm switch, 1 x emergency cargo release button,  1 x Search light control HAT, 1 x tactical cargo release button, 1 x Clutch release button, 2 x Engine conditional levers
  •    8 configurable axes    (X/Y Cyclic axis, wheel brake axis, Throttle axis, Collective axis, Rudder Axis, 2 x ECLs)
  •    Rudder equipped with solid metal rudder pedals, high quality ball joints, ball bearings and our in house pistons x2
  •    In house pistons provides hydraulic feel feedback on all axes
  •    Realistic Cyclic/ Rudder/ Collective / Throttle/ ECLs travel distance
  •    Adjustable aluminum frame
  •    Adjustable position for cyclic, rudder, twist throttle collective, and ECLs
  •    High resolution movements
  •    Easy Setup
  •    Mounting Options
  •    Compatible with Windows XP to Win11, Mac OS, DCS, MSFS2020, FSX, X-Plane, P3D, FlightGear, WarThunder, and all flying PC game / Flight simulator!
  •    Plug and Play with 1 USB connections
